| 一、用途 Use |

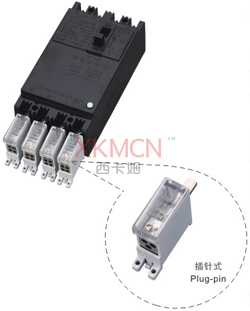

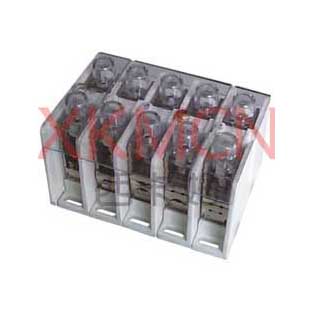

XKM/47LE(100型)系列開關端子，專業(yè)為各小型斷路器、漏電斷路器、空氣開關等，配套性使用，用為電控配電設備成套裝置及組合式終端電器箱中配線而設計，絕緣電壓690V，額定電壓380V，插針式進線端緊配開關連接，無需其它導線、銅、鋁排過渡連接，是目前小型斷路器或漏電斷路器、出線端多路連接使用便捷、牢固可靠的新穎產(chǎn)品。
XKM/47LE(type 100) series switch terminal block, used with various miniature circuit breakers, residual current circuit breakers, air switches, etc., is designed for the layout of complete installation of electric-control distributing equipment and terminal combination electrical box, with insulation voltage up to 690V and rated voltage 380V, its plug-pin inlet
terminal is directly connected with the switch, without other conductors or copper/aluminum busbar transitional joint. It is the most convenient, reliable and firm product for the connection of various circuit breakers, residual circuit breakers as well as outlet terminal multi-circuit connection.
| |
 |

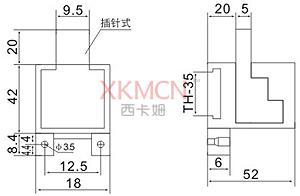

| 二、安裝尺寸 Mounting size |
| |
專業(yè)為各小型斷路器、漏電斷路器、空氣開關組合使用。
Special for the combination of various
miniature circuit breakers, residual current
circuit breakers and air switches |
XKM/47LE(100型) |
 |
XKM/47LE/2×10
|
| 一路進，二路出 |
| 進線: (100型)插針式，出線: 1.5-10mm2 |
| One-inlet, two-outlet |
| Inlet wire:(type 100) pin type,outlet wire:1.5-10mm2 |
| 訂貨號Order number：110312 | | |
 |
XKM/47LE/3×10
|
| 一路進，三路出 |
| 進線：(100型)插針式，出線：1.5-10mm2 |
| One-inlet, three-outlet |
| Inlet wire:(type 100) pin type，outlet wire:1.5-10mm2 |
| 訂貨號Order number：110313 | | |
 |
XKM/47LE/4×10
|
| 一路進，四路出 |
| 進線:(100型)插針式，出線:1.5-10mm2 |
| One-inlet, four-outlet |
| Inlet wire:(type 100) pin type，outlet wire:1.5-10mm2 |
| 訂貨號Order number：110314 | | |
 |
XKM/47LE/6×10
|
| 一路進，六路出 |
| 進線：(100型)插針式，出線：1.5-10mm2 |
| One-inlet, six-outlet |
| Inlet wire:(type 100) pin type，outlet wire:1.5-10mm2 |
| 訂貨號Order number：110315 | | | | |
