| 一、用途 U s e |

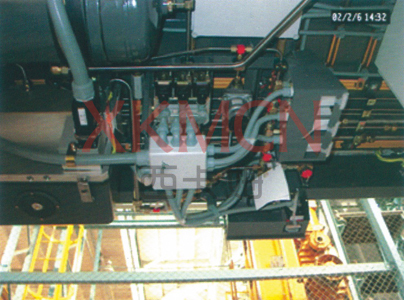

用于1000V以下的控制電氣回路中電纜線芯的分支與聚合，是現代工業諸多領域，室內外電氣控制回路的理想裝置。該系列產品可以通過安裝接線端子、電纜接頭、按鈕開關、信號燈等電器件組成電源盒、控制盒、信號盒等裝置。
It is used for the branching and polymerization of the cable loop in the control electrical return circuit under 1000V. They are the ideal indoor and outdoor electrical control circuit devices in modern industrial areas. The series of products can constitute electrical power boxes, control boxes, signal boxes and other devices by installing connecting terminals, cable joints, button switches or signal lights. |
| 二、特點 F ea tures |
電絕緣性能好/Good electric insulation properties
機械強度高/High mechanical strength
阻燃性好/Good fire retardation
耐腐蝕性強/Strong corrosion resistance
工作溫度范圍大/Wide working temperature range
防護等級高/High-level protection |
| 三、外形尺寸及技術參數 D imensions& T echnicald ata |
| 訂購數據 Orderngid ata |
外形長/寬/高mm
Exterior length/width/height in illimeters |
400/300/190 |
| 材料/materials |
聚碳酸酯/Polycarbonate |
| 密封材料/Sealing materials |
氯丁橡膠/Neoprene |
| 工作溫度/Work temperature |
-40℃~+85℃ |
| 防護等級/Protection grades |
IP66 |
顏色/Version
淺灰色/Shallow gray |
訂貨號/Order Number : 110496 | |
| 訂購數據 Orderngid ata |
外形長/寬/高mm
Exterior length/width/height in illimeters |
500/400/190 |
| 材料/materials |
聚碳酸酯/Polycarbonate |
| 密封材料/Sealing materials |
氯丁橡膠/Neoprene |
| 工作溫度/Work temperature |
-40℃~+85℃ |
| 防護等級/Protection grades |
IP66 |
顏色/Version
淺灰色/Shallow gray |
訂貨號/Order Number : 110497 | |
