XKMSD遂道專用分支防水接線盒

當前位置：

產品中心

接線盒

接線端子

零線端子

多用途端子

開關端子

T接端子

絕緣穿刺線夾

配線器材

XKMSD遂道專用分支防水接線盒

如果您有任何問題可以聯系我們！

聯系我們

產品詳情
返回

一、典型應用 Typicala pplications

1、遂道系統專用
2、建筑照明、路燈、高層堅井線連接
3、高層建筑堅井電纜戶外架空線、電纜溝工廠動力供電主纜
1. Streetlight system
2. Architectural lighting, streetlight and high-rise shaft line connection
3. High-rise shaft cable, outdoor overhead line, troughing, main cable for factory power supply

① 首先剝?nèi)ル娎|外護套皮

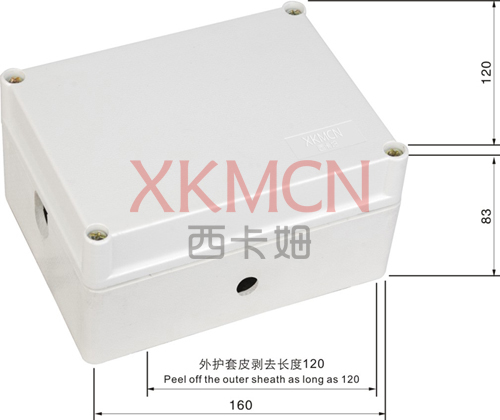

外護套皮剝?nèi)サ拈L(zhǎng)度應小于電纜盒內腔的有效長度。

First, peel off the outer sheath of cable
Peeled length of outer sheath should be smaller than the effective length of inner
chamber of cable box.

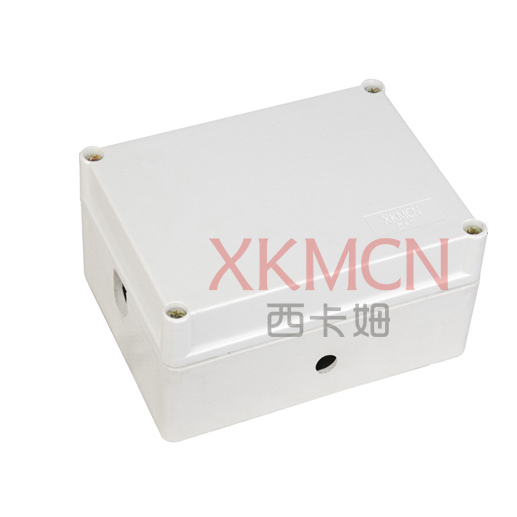

訂貨號Order no .110733

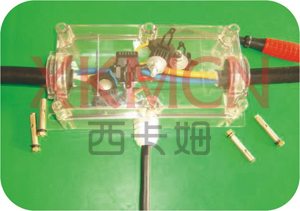

② 不需剝?nèi)サ碾娎|的絕緣皮，接頭完全絕緣；不需截?cái)嘀麟娎|，可在電纜任意位置做分支。
It is unnecessary to peel off the insulating sheath of cable, the joint is fully insulated; it is unnecessary to cut off the main cable, we can make branch at any position of cable.
③ 按照下列步驟安裝絕緣穿刺線夾
Install the insulation piercing connector according to the following procedures


1.將斷面整齊的支線插入分支器蓋套 Insert branch line into the casing cover of connector	2.將分支器固定于主干線連接處，然后用力擰緊力矩螺母 Fix clamp on the joint of main line,then twist firmly by hand.	3. 用六角套筒扳手垂直擰緊力矩螺母至螺帽斷開為止 Vertically twist moment screw to break screw cap with hexagonal set spanner.	4. 繼續用力旋緊螺母直到頂端斷裂脫落 Vertically twist moment screw to break screw cap with hexagonal set spanner.

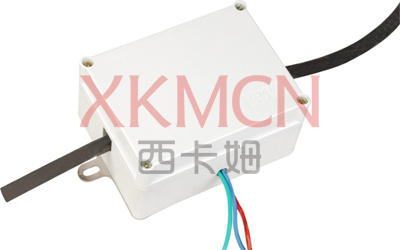

④ 安裝后的遂道分支防水接線盒在分支中呈等距離狀分布。
Tunnel branching waterproof junction box after installation presents equidistance distribution among the branches.

訂貨號Order no .110734

訂貨號Order no .110735

二、安裝方法 Installation methods

遂道分支防水接線盒均使用膨脹螺栓固定于隧道壁上，在隧道側壁的水平位置上，孔深40mm，將 M6 膨脹螺栓塞入孔中，套上穿剌線夾盒安裝支架，然后將M6螺母擰緊。

Tunnel branching waterproof junction box is fixed on the tunnel wall in horizontal position with expansion bolts, hole depth is 40mm, set expansion bolts of M6 into the hole, install the supporting rack of piercing connector box, then tighten the M6 nuts.

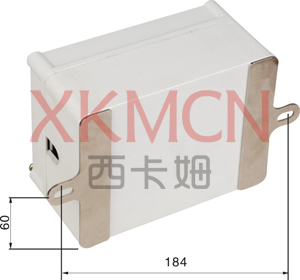

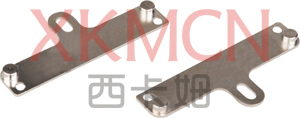

安裝固定架 Installation of fixed mount 訂貨號Order no .110736	訂貨號Order no .110737

三、適用說明 Application description

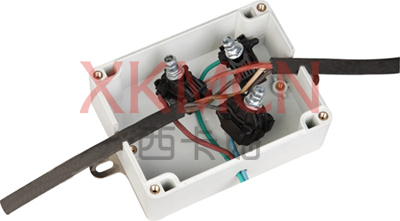

將支線剝?nèi)ヒ欢ㄩL(zhǎng)度的外護套，穿過尼龍防水頭。 Peel off a certain length of the outer sheath of branch line, and put through the nylon waterproof joint.	根據具體情況、需求安裝線夾，注意線夾在帶電安裝過程中應戴上絕緣手套，每個線夾位置應錯開，以便下一步安裝。 Install the connectors according to actual conditions and remands, pay attention to wearing insulating gloves when installing the connectors under live condition, connectors should be staggered from each other, make it convenient for next mounting procedure.

將電纜沿橡膠開口處卡入，并放在防水盒兩端，橡膠開口處應調 整至與防水盒上下蓋接縫處平行！ Set the cable along the rubber opening, place it on two sides of waterproof box, rubber opening should be parallel with the joining part of upper and lower covers of waterproof box!	合上蓋子，將螺絲擰緊（注:安裝6個螺絲時應初步每個進行固定再進行擰緊）。再順時針擰緊支線處防水尼龍頭。 Close the cover, tighten the screws (note: when mounting the 6 screws, shall fix each of them preliminarily, then tighten).
