| 一、產品概述 Genera | |||||
| XKM/HY系列電能計量聯合接線盒是在原生產的XKM/DFY1、2和XKM/PJ1、2型電能計量聯合接線盒的基礎上新開發的產品。為配合電力部門采用標準接線及安全測試創造了良好的條件。 該產品是電能計量裝置標準接線盒中的新一代接線盒，也適用于額定電壓至660V、額定電流至20A的二次回路中，作為帶負荷情況下安全調換成現場檢驗電能表、電氣儀表、繼電保護等電氣設備之用，確保了人身操作安全，對提高了現場工作效率提供了保障。 | |||||
| XKM/HYtype energy-measuring combined terminal blocks are the latest products developed on the basis of former XKM/DFY1 and 2 type and XKM/PJ1 and 2 type energy measuring combined terminal blocks. The product provides favorable conditions for standard connection and safe test of electric power department. As for the standard terminal block boxes of the energy measuring device, the product is a new generation of terminal block, suitable for the circuit of rated voltage 660V and rated current 20A, performing the safe adjustment and field test of watt-hour meter, electric meter, relaying protection device, etc. under on-load conditions, to make sure the safety of human operation and provide the guarantee of improving the field working efficiency. | |||||
| 二、結構特點 Structural features | |||||

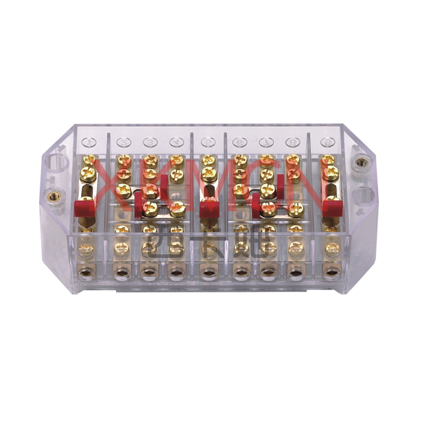

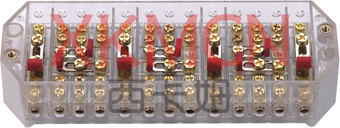

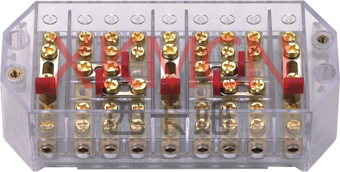

| 1、該產品全部采用了高分子聚碳酸酯材料注制而成。因而它具有阻燃性，耐高溫，不吸水、潮 濕 、 絕抗緣性能好，抗沖擊、不易碎裂、抗老化等多種優質特性。結構合理，色澤鮮， 外 形 美艷觀。各相電壓、電流具有相序顏色標志，既方便聯合接線，又可避免因相序錯 而 造 成接計量錯誤。帶封印螺絲，可防竊電。 2、采用透明蓋板，既能觀察到接線盒內部的工作狀態；既直觀，又安全可靠；有的底板和外殼全部采用透明材料，既安裝方便，又可透視到盒內所有導電部件，達到了檢修方便、安全用電的目的。 3、盒內各回路中專門設置了測試孔，十分方便插入測試筆，極大地方便了安全檢查和測試。 1、The product adopts high-molecular polycarbonate material and is made by injection moulding process, therefore, it has the advantages such as flame retardant, high temperature resistance, no water absorption, moisture resistance, favorable insulation, impact resistance, no easy to crack, aging resistance and so on. It is featured with reasonable structure, vivid color and nice appearance. In addition, the voltage and current of each phase has the mark of phase sequence color, so it is easy for combined connection and avoids the measurement error that is caused by wrong phase sequence. It is fixed with sealing screw that is helpful for preventing the electricity being stolen. 2、Because the cover plate is made of transparent material, it not only can take convenience for viewing the operation state of terminal block inside, but also can facilitate the installation and make sure the reliability of connection. And, some bedplates and enclosures are also made of transparent material, it is very easy for installing, besides, the conductive parts in the terminal block may be watched, so as to achieve the goal of convenient maintenance and safe power utilization. 3、Some test holes are equipped at the circuits, which can facilitate the insertion of test pen and take the great convenience for safety examination and test. | |||||
| 三、產品用途 Application | |||||
| 適用于計量箱，電表箱，成套柜體，變電站；可直接安裝于三相三線、三相四線，額定電壓220～660V、電流5～20A的二次回路中。 It is applicable for metering box, watt-hour meter box, complete cubicle, transformer substation, etc., directly installed at the three-phase three-wire and three-phase fourwire secondary circuit of rated voltage 220-660V and current 5-20A. | |||||
| 四、主要技術指標 Main technical indexe | |||||
| 1、絕緣電壓：660V 50HZ(60HZ) 2、額定電流：5～20A 3、工頻耐壓：3000V/1min 4、環境溫度：-40℃～+60℃ 5、絕緣電阻＞30MΩ |
1. Insulation voltage: 660V 50HZ(60HZ) 2. Rated current: 5～20A 3. Power frequency withstand voltage: 3,000V/1min 4. Ambient temp.: -40℃～+60℃ 5. Insulation resistance: ＞30MΩ | ||||

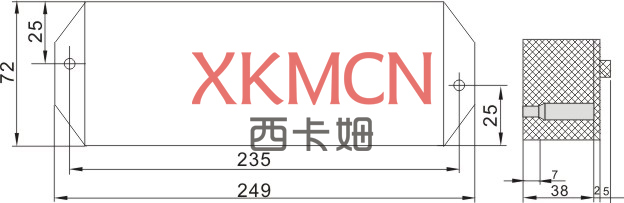

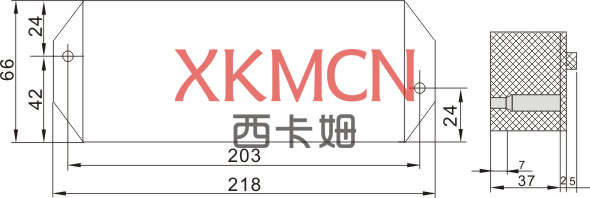

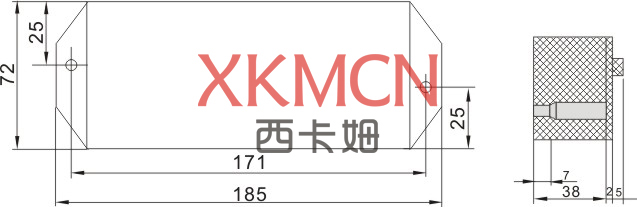

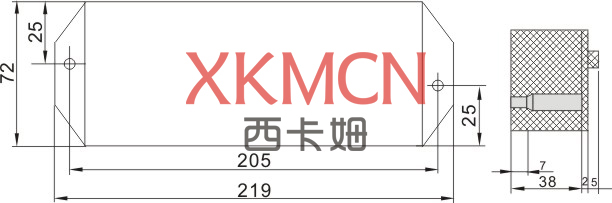

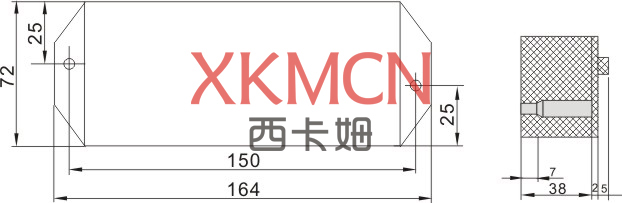

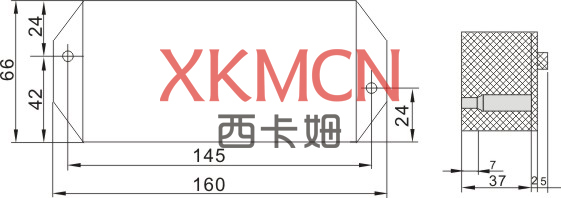

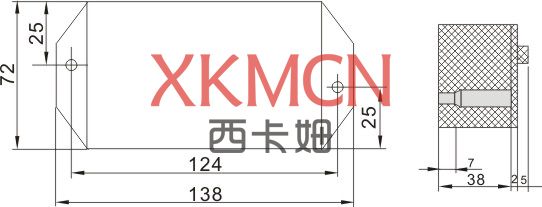

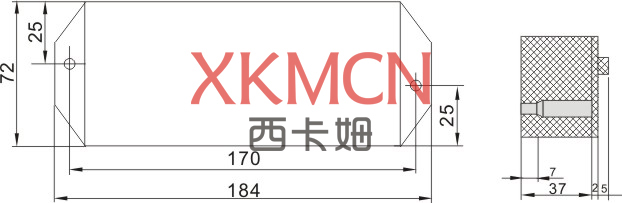

| 四、產品名稱/型號/訂貨號 Product name/model/order number | |||||||||||||
| |||||||||||||
| |||||||||||||
| |||||||||||||
| |||||||||||||
| |||||||||||||
| |||||||||||||
| |||||||||||||
| |||||||||||||
